SKU: GP2SAL

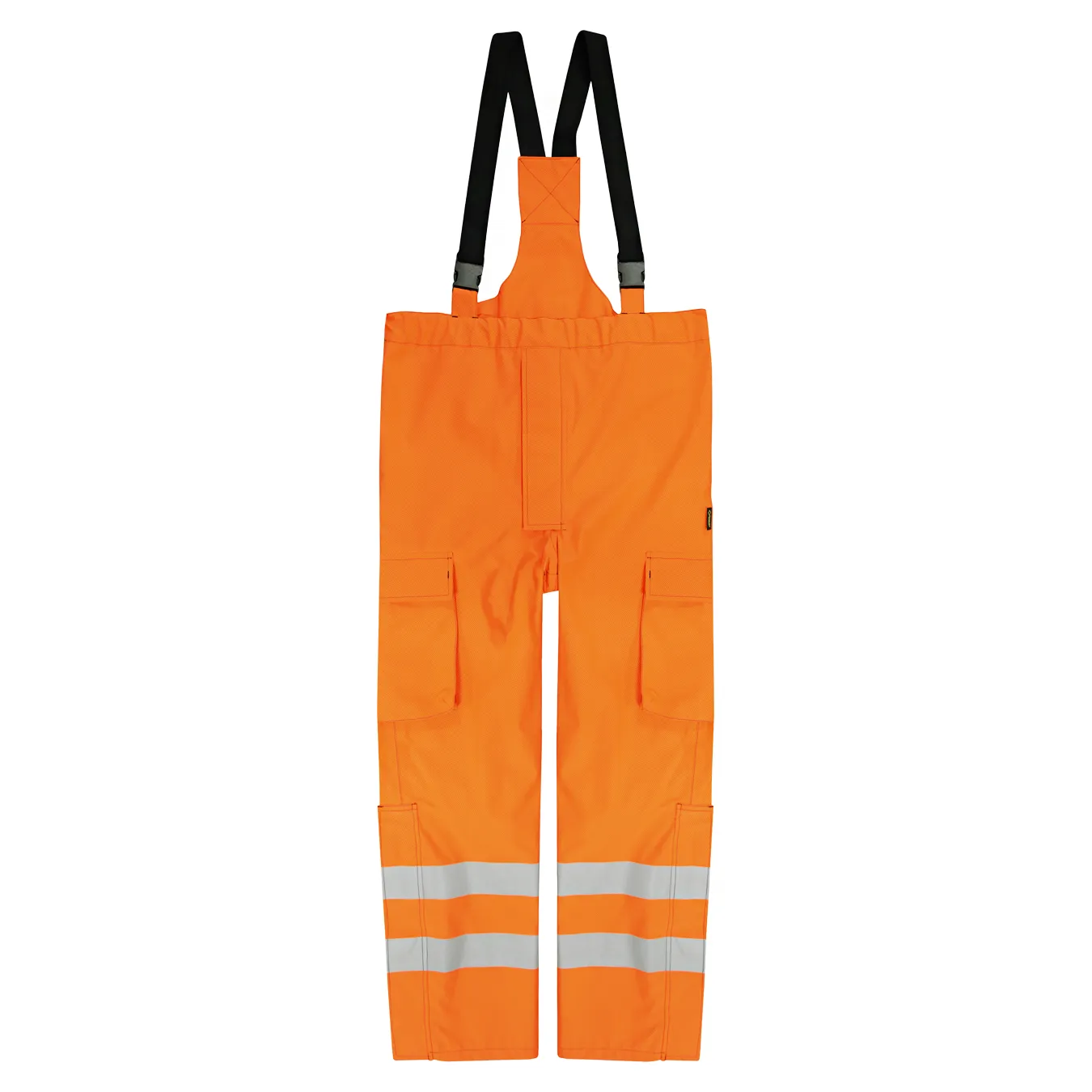

Orbit Altitude GORE-TEX® PYRAD® Arc-Rated Hi-Vis Salopettes, Class 1
Arc Rated GORE-TEX® PYRAD® salopettes: hi-vis Class 1, EN 61482-2 APC 2 (ATPV 48 cal/cm²), EN ISO 11612 and EN 343 4:3:R. The partner to the Velocity jacket.Read the full description ↓
Free delivery on orders over £150
Competitive B2B trade pricing
Named account manager for regular orders
Why Arc Rated GORE-TEX® PYRAD® Garments
Durably waterproof
Breathable
Totally windproof
Lightweight
Flame resistant
Arc rated protection
See the full range, how the membrane works and rail and arc-rated options on our GORE-TEX® Workwear page. Keep it performing with our guide to washing GORE-TEX® Workwear, or read how it compares with standard waterproofs.
Frequently asked
Why is it only Class 1?
Class 1 is the class for leg wear on its own. Wear it with the Class 3 Velocity jacket where your site requires Class 3.
Is it rail approved?
The orange style, GP2SALR, is certified to RIS-3279-TOM Issue 2.
Is it the same fabric as the Velocity jacket?
Yes. Both are Arc Rated GORE-TEX® PYRAD® Garments with the same arc and flame certifications.
Specification
| Manufacturer | Orbit International |
|---|---|
| Product code | GP2SALY (yellow/navy) · GP2SALR (orange) |
| Technology | GORE-TEX® PYRAD® Product Technology, 2-layer |
| Hi-vis | EN ISO 20471:2013+A1:2016 Class 1 |
| Weather protection | EN 343:2019 4:3:R |
| Arc rating | EN 61482-2:2020 APC 2 (ATPV 48 cal/cm², ELIM 42 cal/cm²) |
| Flame resistance | EN ISO 11612:2015 (A1, A2, B2, C1, D3, E1, F1) · EN ISO 11611:2015 Class 2 |
| Other standards | EN 1149-5:2018 (antistatic) · EN 13034 Type 6 |
| Rail | RIS-3279-TOM Issue 2 (GP2SALR orange only) |
| Sizes | XS–4XL |
| Spec sheet | Download PDF |
From the manufacturer's specification. Check the garment label for the edition in use.
The Altitude completes the arc-rated GORE-TEX® PYRAD® suit with the Velocity jacket. It is for network, substation, rail electrification and energy teams whose legs need flame and arc protection as well as waterproofing.
It uses the same fabric as the jacket: a 2-layer GORE-TEX® laminate with GORE-TEX® PYRAD® Fabric Technology, with a 50% aramid, 50% viscose lining. Its certifications match:
- EN 61482-2 arc protection (APC 2, ATPV 48 cal/cm², ELIM 42 cal/cm²)
- EN ISO 11612 heat and flame (A1, A2, B2, C1, D3, E1, F1)
- EN ISO 11611 Class 2
- EN 1149-5 antistatic
- EN 13034 Type 6
- EN 343 4:3:R
It is hi-vis to EN ISO 20471 Class 1. The orange style (GP2SALR) is also certified to RIS-3279-TOM Issue 2.
It has adjustable shoulder braces, an elasticated waistband, combat-style leg pockets and zipped ankles with an internal storm flap, plus hi-vis bands on the lower leg.
What it isn't: Class 1 is the hi-vis level for leg wear on its own. Where Class 3 is required, wear it with the Velocity jacket. As with any arc-rated garment, check the ATPV against your arc-flash risk assessment.
Features
- Harmonised Standard:
- EN ISO 13688: 2013;
- EN ISO 20471: 2013+A1: 2016 (Class 1 Salopettes);
- EN 1149-5:2018
- EN 61482-2: 2020 (ELIM=42 cal /cm2 / ATPV=48 cal/cm2 /APC 2 );
- EN 343: 2019 (4 3 R );
- EN 13034: 2005/A1: 2009 (type 6)
- Technical Specification:
- EN ISO 11612: 2015 (A1, A2, B2, C1, D3, E1, F1);
- EN ISO 11611: 2015 (Class 2, A1, A2);
- RIS - 3279- TOM Issue 2 (2019) (Only Style GP2SALR)
- GORE-TEX® Ebro 2-layer
- 99.4% Polyester / 0.6% carbon with GORE-TEX® PYRAD® Fabric Technology
- Lining 50% aramid / 50% Viscose (120 gsm) (Yellow / Navy Colour Only)
- Adjustable shoulder braces
- Elasticated waistband
- Combat-style leg pockets
- Adjustable ankles with zip closure and internal storm flap
- Hi-visibility bands to lower leg (Yellow / Navy Colour Only)
- FABRICS: (Orange Colour Only)
- Hi-visibility bands, on the lower leg (Orange Colour Only)
