Orbit Velocity GORE-TEX® PYRAD® Arc-Rated Hi-Vis Jacket, Class 3

Name: Orbit Velocity GORE-TEX® PYRAD® Arc-Rated Hi-Vis Jacket, Class 3
Brand: Orbit International
SKU: GP2J
Price: 396.55 GBP
Availability: InStock

In Stock|Fast UK delivery

Arc Rated GORE-TEX® PYRAD® jacket: hi-vis Class 3, EN 61482-2 APC 2 (ATPV 48 cal/cm²), EN ISO 11612 and EN 343 4:3:R. For arc-flash and wet work.Read the full description ↓

Colour

Size

Request a Quote Call to Order

Free delivery on orders over £150

Competitive B2B trade pricing

Named account manager for regular orders

Why Arc Rated GORE-TEX® PYRAD® Garments

Durably waterproof
Breathable
Totally windproof
Lightweight
Flame resistant
Arc rated protection

Animation: W. L. Gore & Associates. See how PYRAD® arc protection works, with Gore’s video →

See the full range, how the membrane works and rail and arc-rated options on our GORE-TEX® Workwear page. Keep it performing with our guide to washing GORE-TEX® Workwear, or read how it compares with standard waterproofs.

Frequently asked

What does ATPV 48 cal/cm² mean?

ATPV (arc thermal performance value) is the incident energy at which there is a 50% chance that enough heat gets through to cause the onset of a second-degree burn. Your arc-flash assessment tells you the energy you need to protect against.

Is the orange Velocity rail approved?

The orange style, GP2JR, is certified to RIS-3279-TOM Issue 2.

Does the hood fit over a helmet?

Yes. It is sized for helmet use, with crown adjustment.

Which trousers match it?

The Altitude salopettes, made from the same Arc Rated GORE-TEX® PYRAD® fabric.

Specification

Manufacturer	Orbit International
Product code	GP2JY (yellow/navy) · GP2JR (orange)
Technology	GORE-TEX® PYRAD® Product Technology, 2-layer
Hi-vis	EN ISO 20471:2013+A1:2016 Class 3
Weather protection	EN 343:2019 4:3:R
Arc rating	EN 61482-2:2020 APC 2 (ATPV 48 cal/cm², ELIM 42 cal/cm²)
Flame resistance	EN ISO 11612:2015 (A1, A2, B2, C1, D3, E1, F1) · EN ISO 11611:2015 Class 2
Other standards	EN 1149-5:2018 (antistatic) · EN 13034 Type 6
Rail	RIS-3279-TOM Issue 2 (GP2JR orange only)
Hood	Integral peaked hood, sized for helmet use
Spec sheet	Download PDF

From the manufacturer's specification. Check the garment label for the edition in use.

The Velocity is for people who face electrical and flame risk in the same weather as everyone else: electricity network and substation teams, rail electrification crews, utilities and energy sites. Arc Rated GORE-TEX® PYRAD® Garments combine flame and arc protection with waterproofing in one layer.

The outer fabric is a 2-layer GORE-TEX® laminate with GORE-TEX® PYRAD® Fabric Technology, with a 50% aramid, 50% viscose lining. The jacket carries a long list of certifications:

EN 61482-2 arc protection (APC 2, ATPV 48 cal/cm², ELIM 42 cal/cm²)
EN ISO 11612 heat and flame (A1, A2, B2, C1, D3, E1, F1)
EN ISO 11611 Class 2 for welding-related hazards
EN 1149-5 antistatic
EN 13034 Type 6 for light chemical splash
EN ISO 20471 Class 3 hi-vis
EN 343 4:3:R rain protection

The orange style (GP2JR) is also certified to RIS-3279-TOM Issue 2.

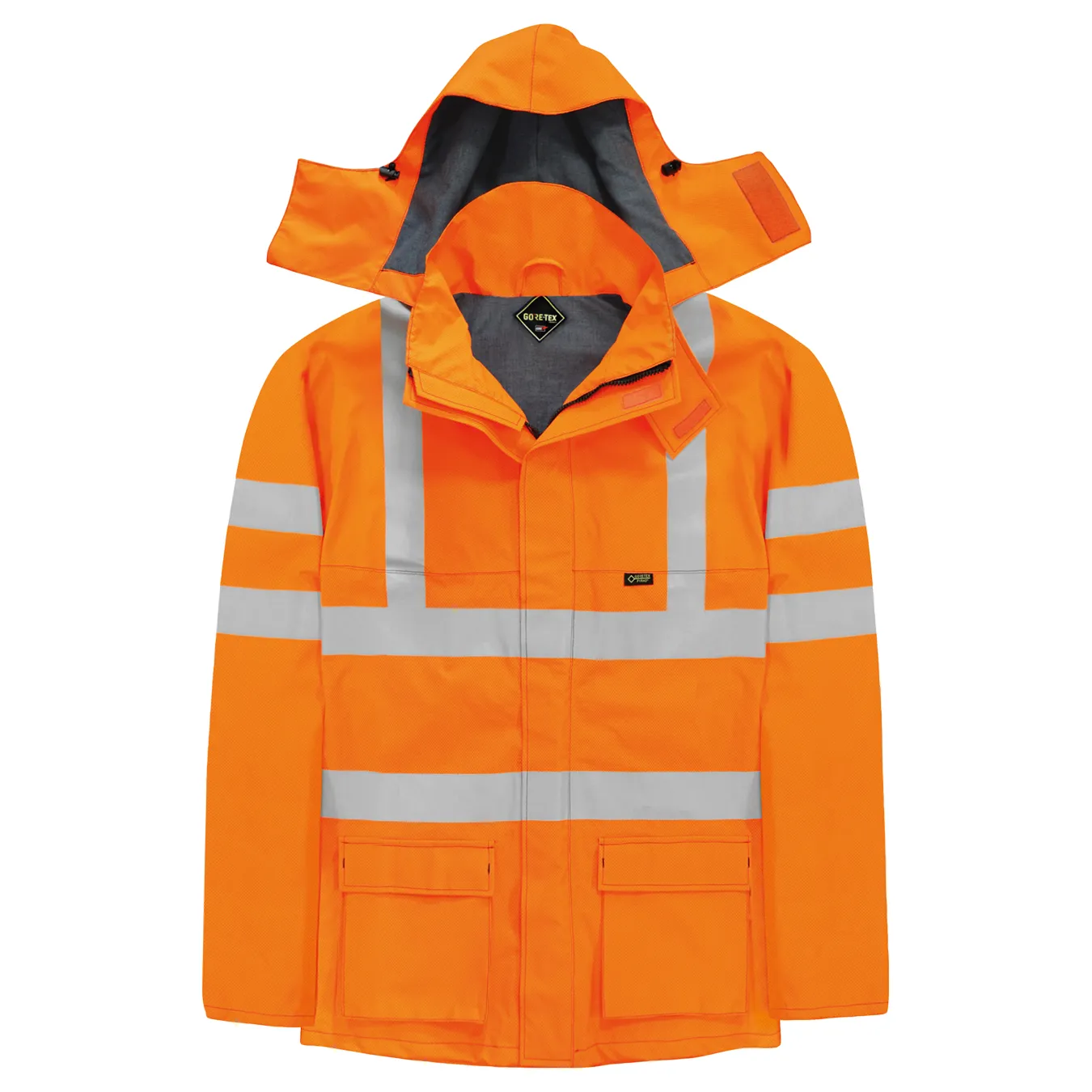

The integral peaked hood has deep chin protection and crown adjustment, and it is sized to go over a helmet. It has a front zip under a hook-and-loop storm flap, storm cuffs, two bellows pockets and FR hi-vis tape on the arms and chest.

What it isn't: an arc rating only protects up to the incident energy it was tested to, so match the ATPV to your arc-flash risk assessment. It is PPE Category III, so follow your electrical safety rules for use and inspection.
